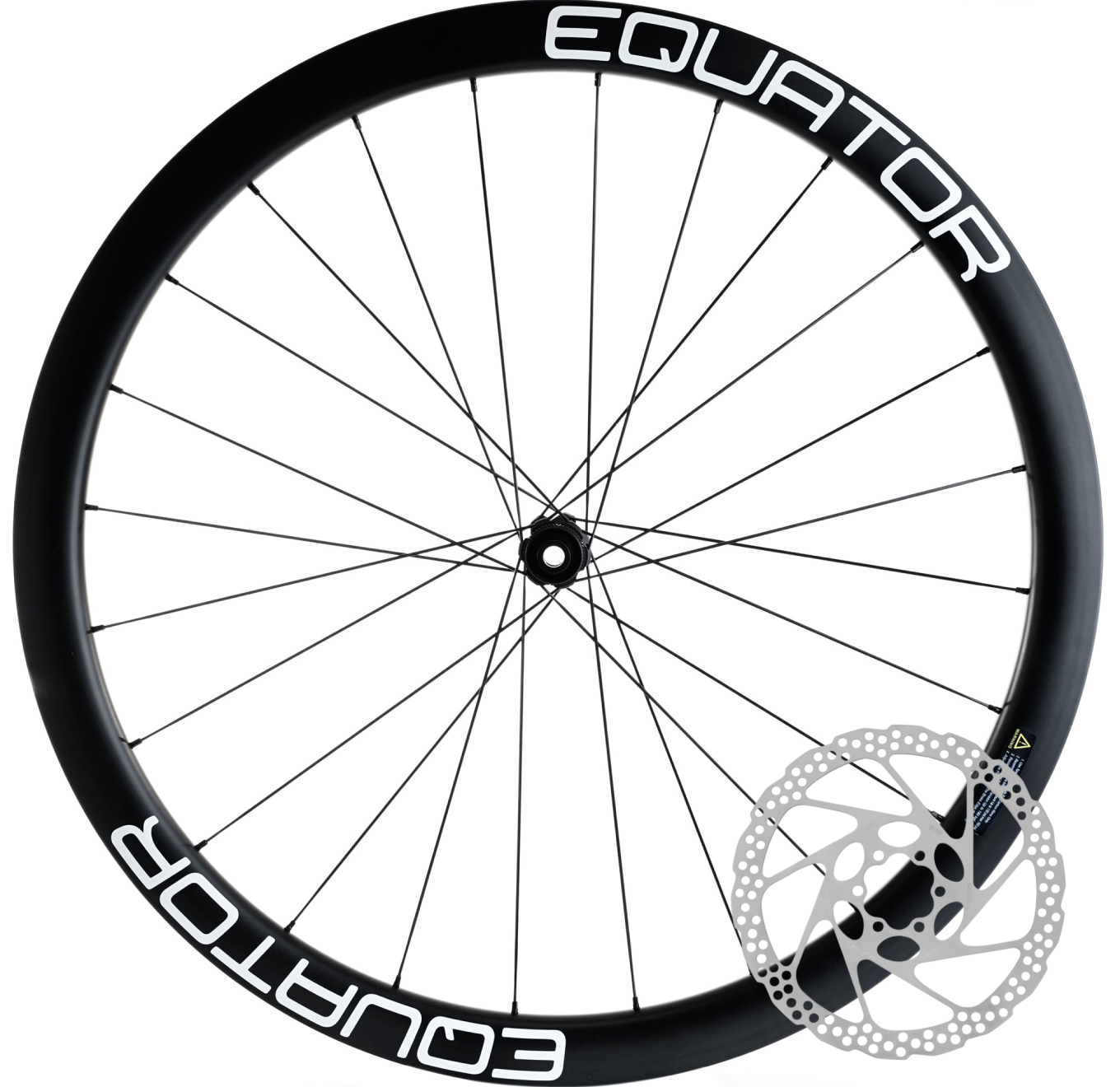

Equator Gravel 40C Disc Ultimate Wheelset

Ultra lightweight wheels specially developed for gravel, suitable for all conditions and terrains. The most sought-after model among racers and true gravel enthusiasts. Top wheels without compromise!

Key properties

  • 1310 grams
  • 24 x 28 x 40 mm
  • Max rider weight 110 kg

On stock

  • 14 days to return unused wheels
  • All wheels are manufactured by hand
  • 2 year warranty on construction faults
  • EU shipping to our service center

Benefits

1

The "Forties" in the Ultimate edition is an ultra-lightweight wheel (1310 g) with excellent stiffness and durability for all types of terrain. With wide gravel tyres, they ride well and look great.

2

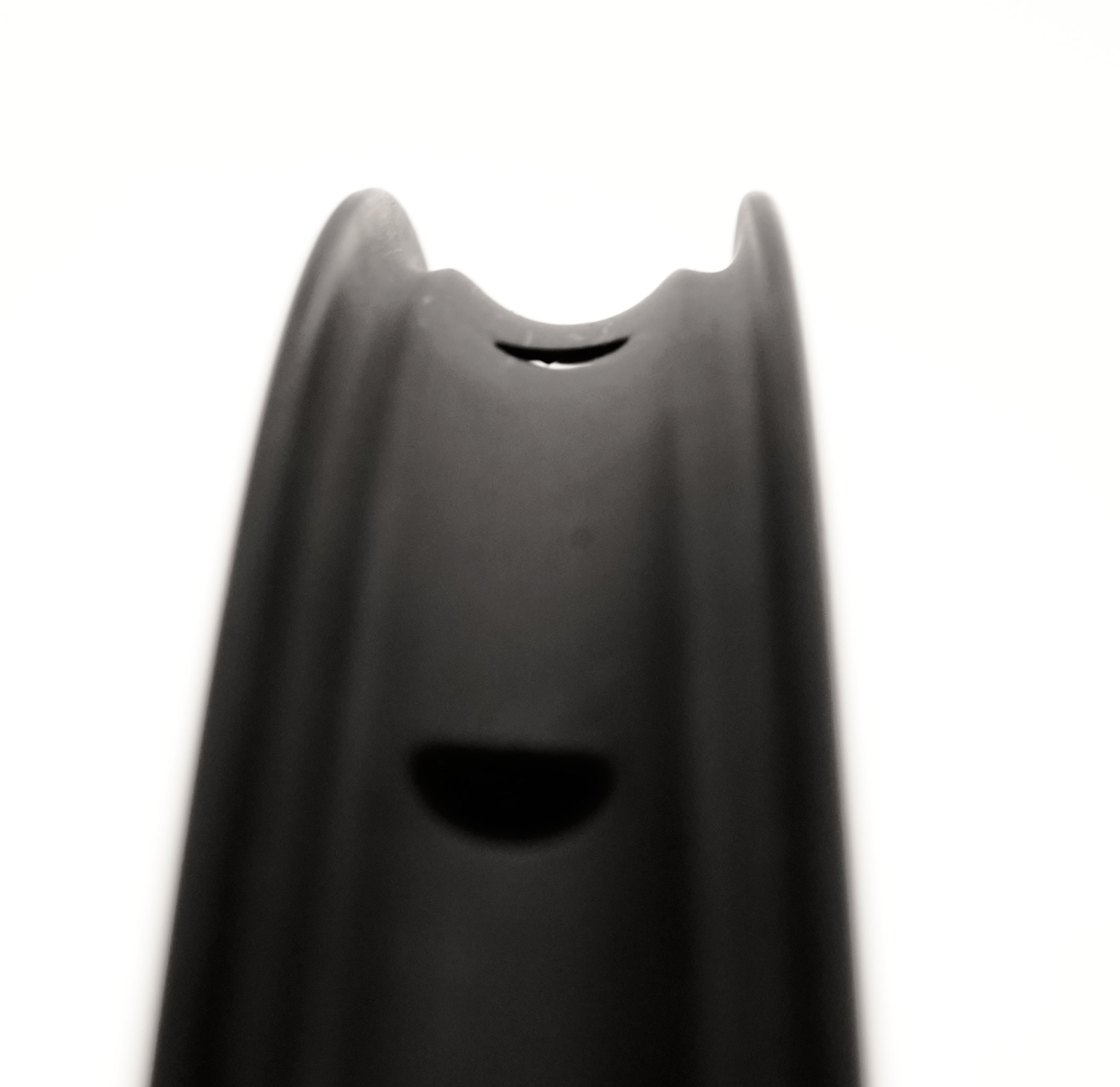

The ultra-light rim (400 g) is tubeless-ready.

3

13 years of experience, numerous awards in independent tests at home and abroad, over 70 patents and less than 1% of returned bikes. These are not promises, we do our best for your performance.

Reviews

RennRad

Equator carbon wheels will satisfy you with excellent price/performance ration. What are their other advantages?

MT Biker

Equator carbon wheels test: we tried out wheels that will not ruin your pocket

Petr Vabroušek

Petr Vabroušek

Professional triathlete

Great performance for unbeatable price

In previous 30 years in a professional triathlon I was racing on wheels of the most famous cycling brands. When I discovered Equator I found out that in a comparison with other, more expensive wheels, Equator are not riding slower and are not heavier.

Specs

Color:
Matte black (UD)
Rim:
Japanese Toray T700 and T800 carbon, NCT (nanocarbon tube) enriched epoxy - lower weight and higher chip resistance.
Compatible with tubeless tyres.
Hubs:

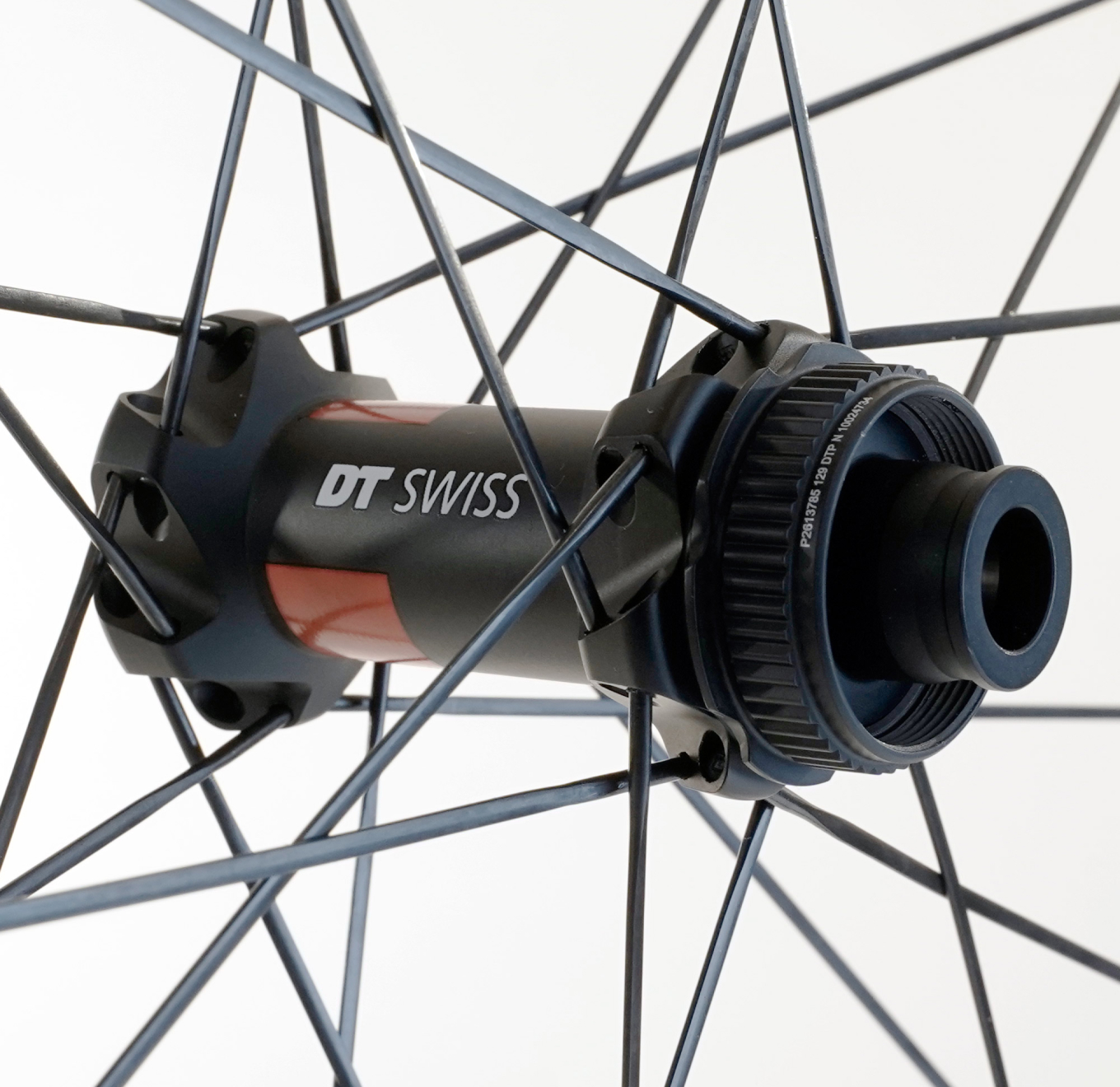

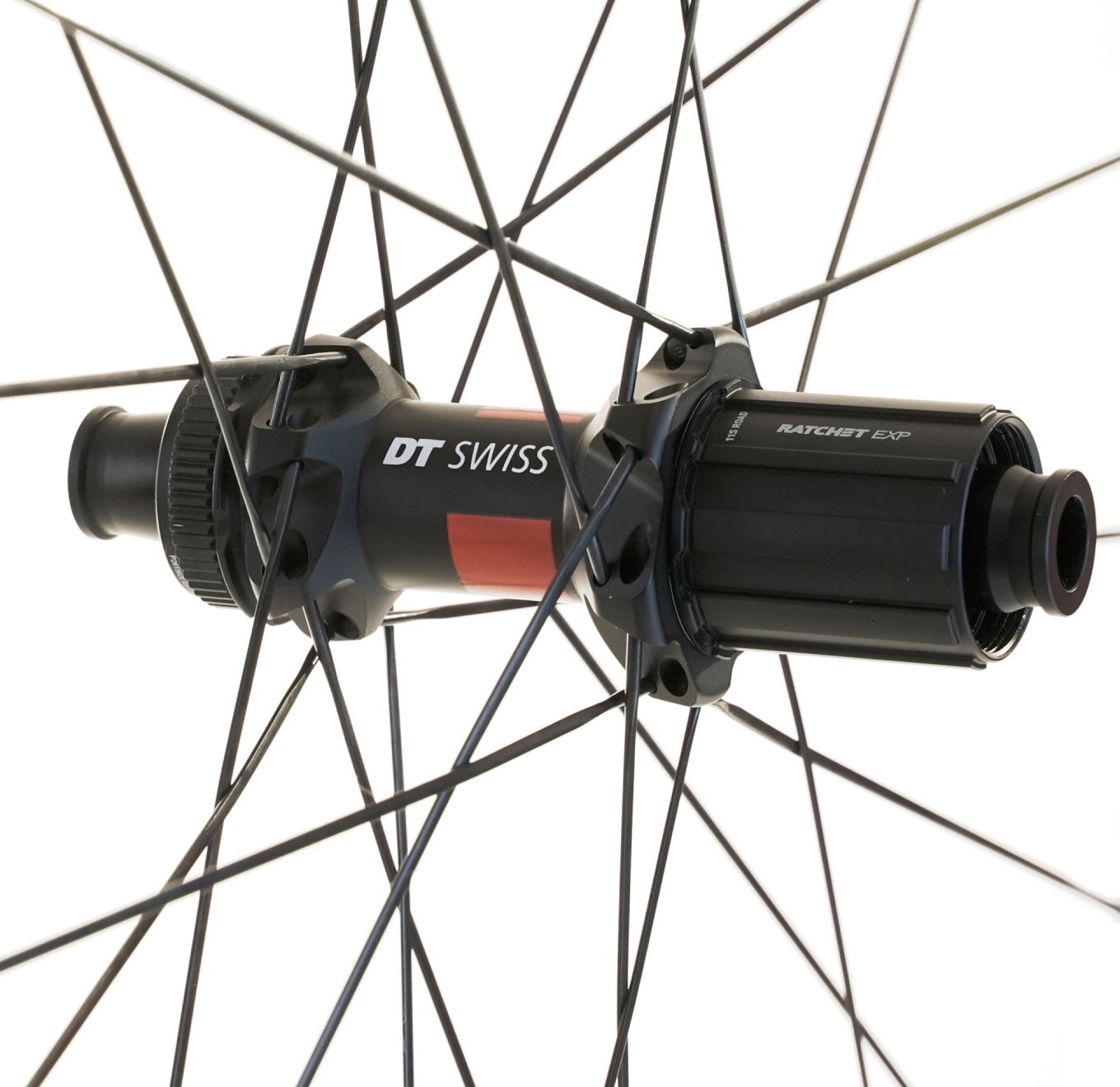

DT SWISS 240EXP, Straight Pull. Shimano/SRAM/Campagnolo. Center lock, thru axle, 12 x 142 mm (rear), 12 x 100 mm (front). Comes with Shimano hubs, for Sram or Campagnolo just add a note in the shopping cart.
Spokes:
DT SWISS AEROLITE, Straight Pull with DT SWISS Squorx 2.0 x 15 mm, pro-lock, alu
Bearings:
Enduro sealed industrial bearings
Lacing:
24/24 (front/rear)
Max pressure:
8 bar
User manual (CZ):
Here

Technology

The rim is made of high quality Japanese Toray T700 and T800 fibres. Prepreg is made by us in our factory. The whole process is completely under our control.

The epoxy used for the rim body is enriched with carbon nanofibers (CNT). This results in up to 30% higher strength and chip resistance. At the same time, we can use less epoxy and thus produce lighter wheels.

DT Swiss 240 EXP centres combined with AeroLite spokes and ultra-light rims offer the lowest possible weight without compromising on durability and handling. It is a highly tuned system.

DT Swiss AeroLite spokes together with external DT Swiss Squorx pro-lock aluminium nipples allow the wheels to be centred without the need to remove the tyre.
